Laser Engraver Module for SCULPFUN S10 S9 S10 S6 Pro Laser Engraving Machine,90W Effect Cutting Tool,Clean Cut Engraving Wood Metal Arcylic
Frequently Bought Together
Product Model: SCULPFUN S10 Laser module set

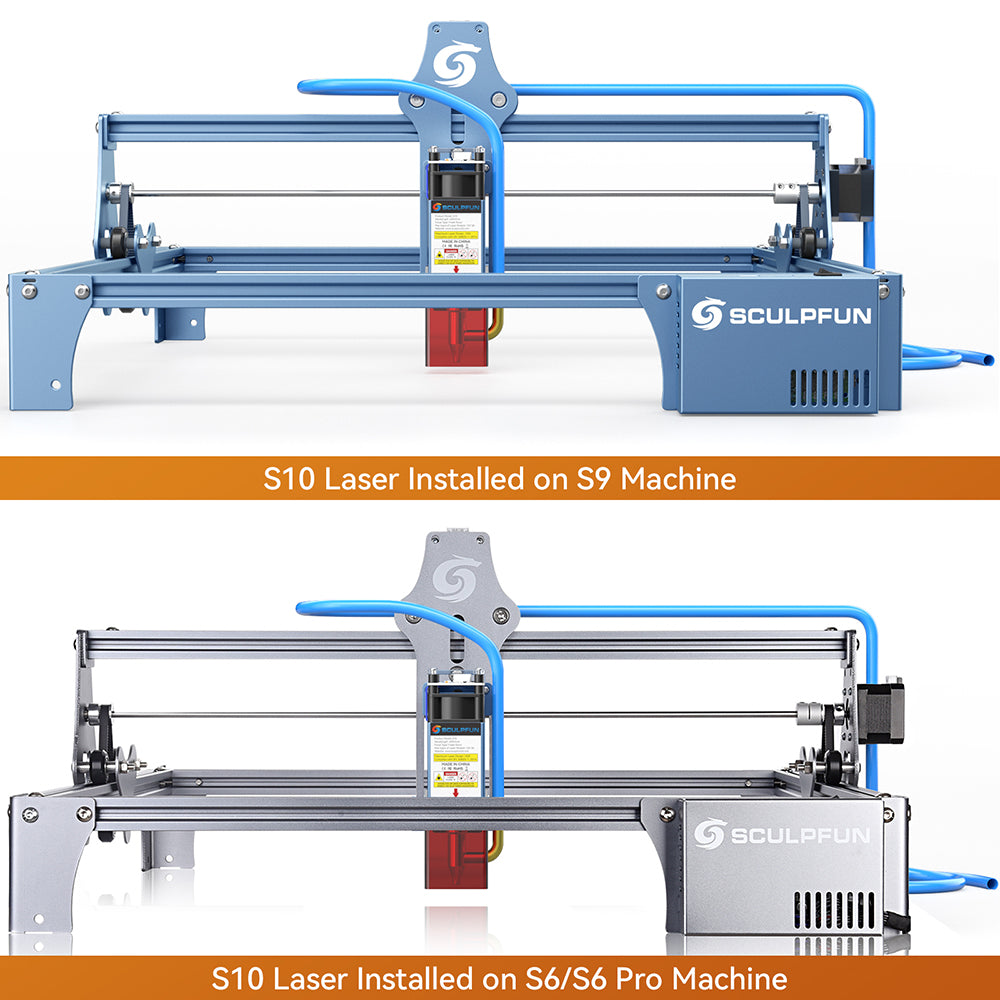

Applicable Models: SCULPFUN S9/S6pro/S6, ATOMSTACK A5/A5Pro, ORTUR (12V Version), ELEKSMAKER and other laser engraving machines, or DIY 3D printers, CNC machine tools.
Main Features:
Powerful High-Speed Air-Assist: SCULPFUN S10 laser modules are equipped with high-speed air-assist nozzles. When using the same air compressor (sold separately), e.g. B. Using 30L/min 0.03MPa air compressor, S10 nozzle with advanced fluid mechanics design ejects high speed airflow up to 14.5m/s. This greatly improves cutting penetration and cutting efficiency.
Highly Compatible Design: The SCULPFUN S10 Laser Module adopts sophisticated and highly compatible structural connection device, which can be well matched with various laser engraving machines, laser cutting machines, 3D printers, CNC milling machines, etc. Can be installed on machines of different brands.
Faster, Stronger and Cleaner: SCULPFUN S10 has comparable industrial-grade wood cutting performance: First, the cutting efficiency is greatly improved, and the cutting is faster; second, the cutting penetration is stronger, which can cut many woods with high density; thirdly, the cutting surface becomes cleaner, and the powerful airflow blows away the residues, leaving the surface of the cutting object free from stains.
Ultra Fine and High Density 10W Laser Shaping Technology: The laser power of SCULPFUN S10 is increased to 10W, which is twice that of SCULPFUN S9. Has stronger piercing and engraving ability.

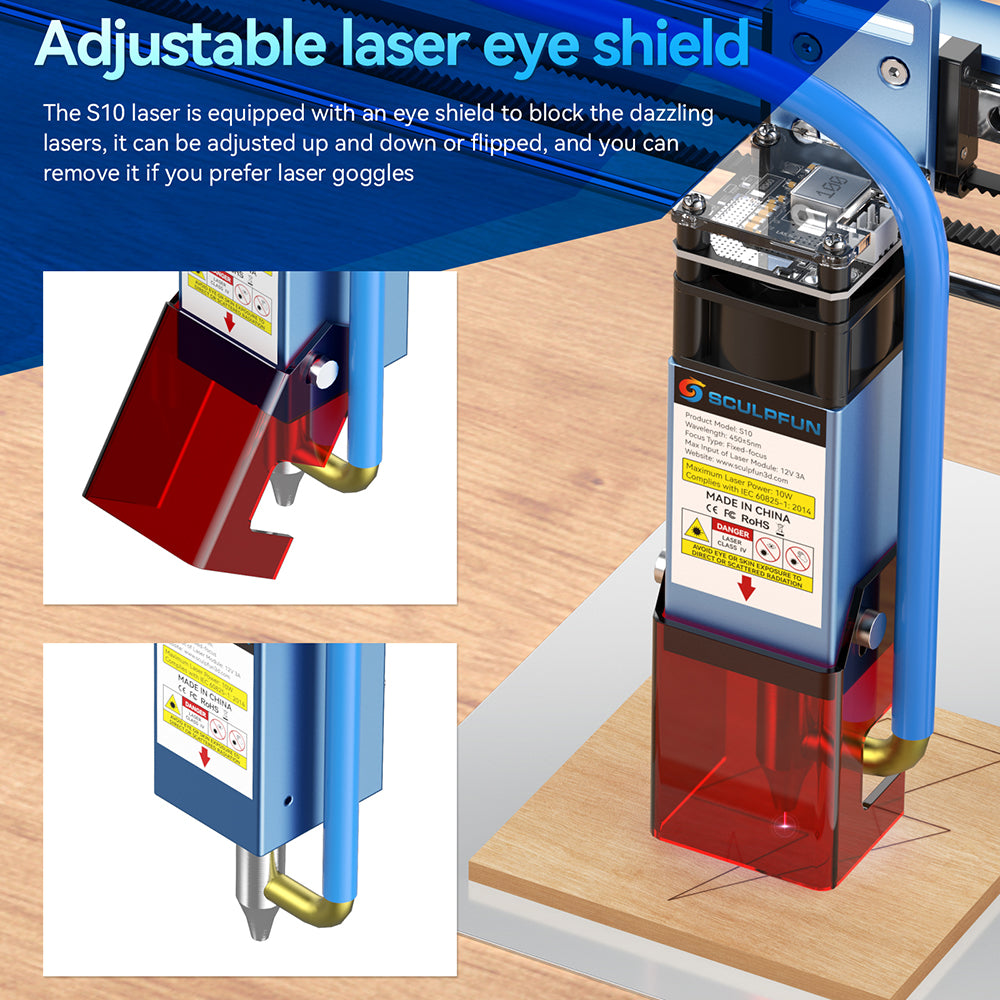

Detachable Laser Eye Shield: The S10 is equipped with a detachable eye shield that won't glare even without glasses. Even if you don't need it, you can easily disassemble it. Universal 12V/PWM modulation board: It uses a common 12V/PWM modulation board, which can be adapted to popular GRBL or CNC motherboards.
Specification:
Engraving Material: all kinds of wood (including walnut, cherry and other high density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, alumina, 304 stainless steel, ceramic, dark stone
Cutting Material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
Laser Output Power: 10W (light energy)
Air Hose Inner Diameter: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, recommended outlet diameter of 8mm)
Laser Wavelength 455±5nm
Laser Type and Fixed Focus: Fixed focus laser, fixed focus through 50mm measuring column
Laser Protection Cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Laser Shell Material: Aluminum Alloy
Dimension:
Package Size: 22.70 x 13.60 x 9.50 cm / 8.94 x 5.35 x 3.74 inch
Package Weight: 0.85kg/1.87lb
Package Contents:
1 x 7.5mm Inner Diameter Hose
1 x Acrylic Protective Cover
1 x S10 Laser Head
