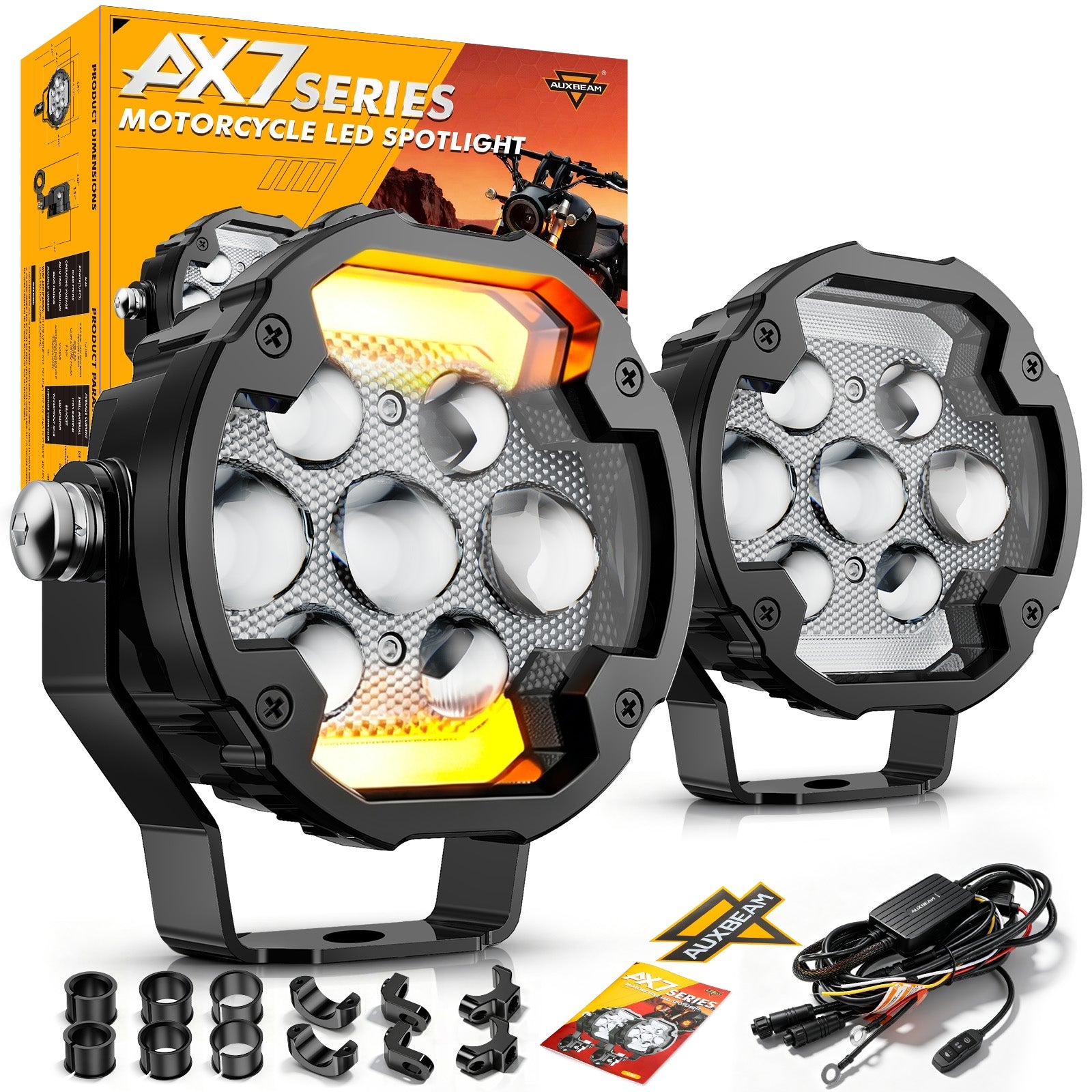

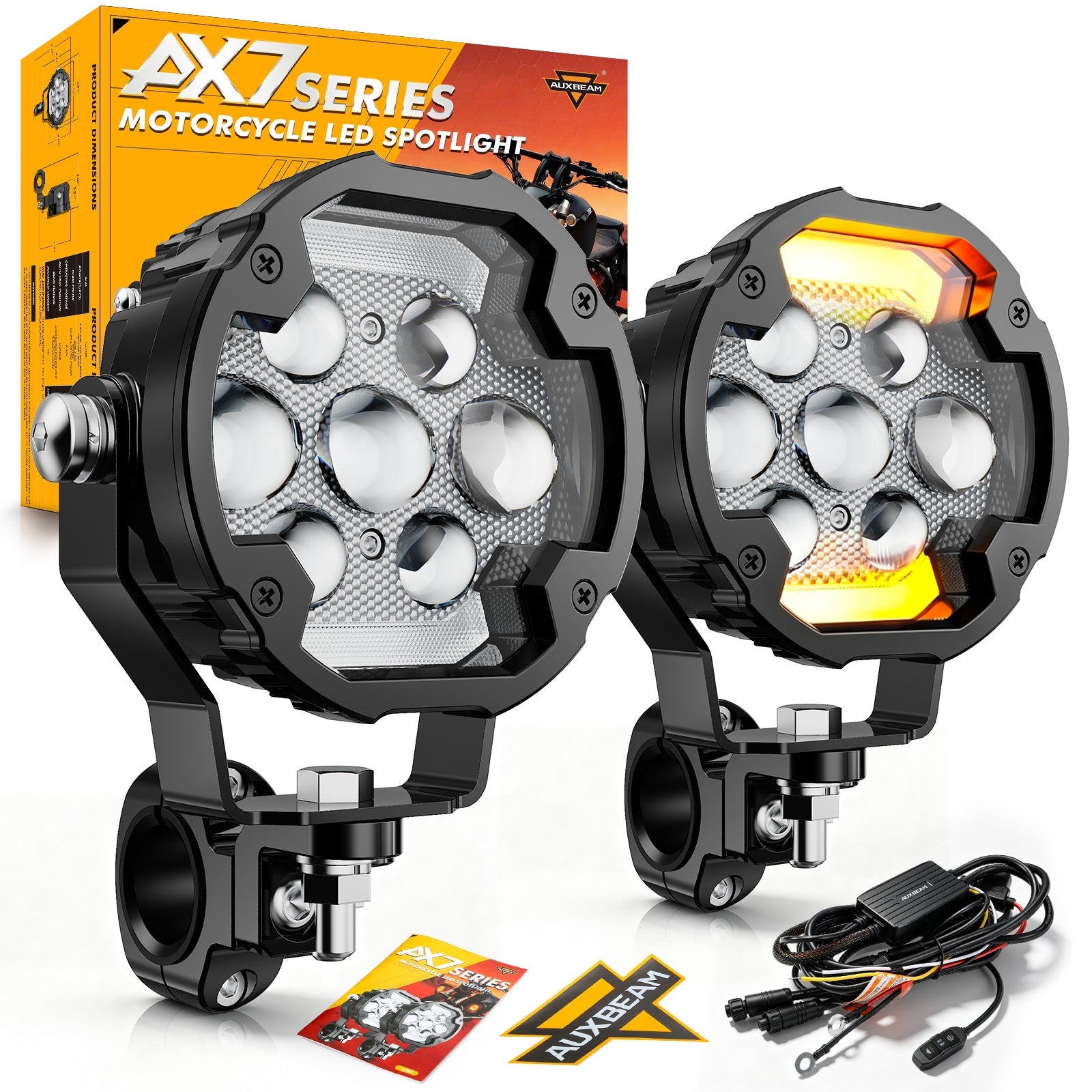

4.2 Inch Motorcycle Driving Lights Fog Light, AX7 Series Auxiliary Light 2PCS/Set

MAIN FEATURES

HIGH-PERFORMANCE DUAL-COLOR SPOTLIGHT

Equipped with advanced 2835CSP LED chips for amber DRL, 3570CSP LED chips for low beam, and 5050CSP LED chips for high beam, combined with a precision PC lens design to ensure focused and uniform light distribution, significantly enhancing nighttime riding visibility.

DRL is 1-4W/per (cycles from dim to full brightness); Low beam (yellow light) is 38W/per, lumen flux up to 7000LM; High beam (yellow and white combo light) is 36W/per, lumen flux up to 5700LM.

It can switch between 3000-3500K yellow light and 5000-5500K yellow-white light to suit your driving needs, ensuring perfect driving visibility under all circumstances.

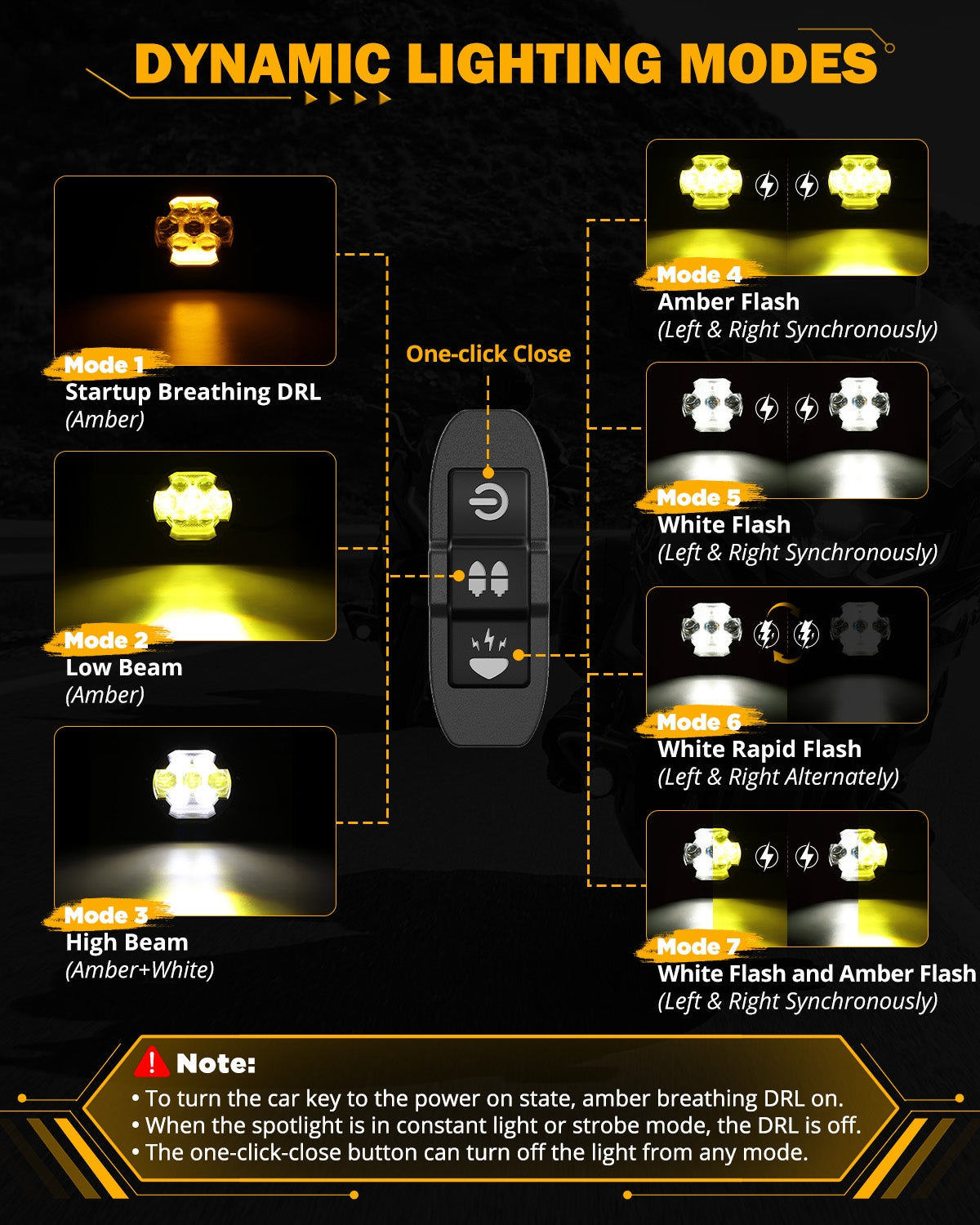

3+4 LIGHTING MODES

This motorcycle spotlight has 3 main lighting modes: DRL(amber), always-on mode, and flashing mode.

After powering on, the spotlight will automatically activate the amber daytime running lights(breathing mode). After three consecutive breaths, the DRL will automatically switch to constant-on mode. This feature draws attention to your motorcycle, alerting other road users to your presence. Plus, you can turn off the DRL by long-pressing the “One-Key Shutdown” button.

Always-On Mode (Short Press to Cycle): DRL Amber, Low Beam(Yellow), High Beam(Yellow & White Combo).

Flashing Mode(Short Press to Cycles): Yellow Fats Flash(Synchronized Left & Right), White Fast Flash(Synchronized Left & Right), White Ultra-Fast Flash(Alternating Flash Left & Right), White Flash-Yellow Flash(Synchronized Left & Right).

Users can switch between different beam modes with simple button operation to meet the needs of different scenarios.

Note: Whether during startup or use, when all lights are turned off, and the main light source button is pressed again, the DRL light will illuminate.

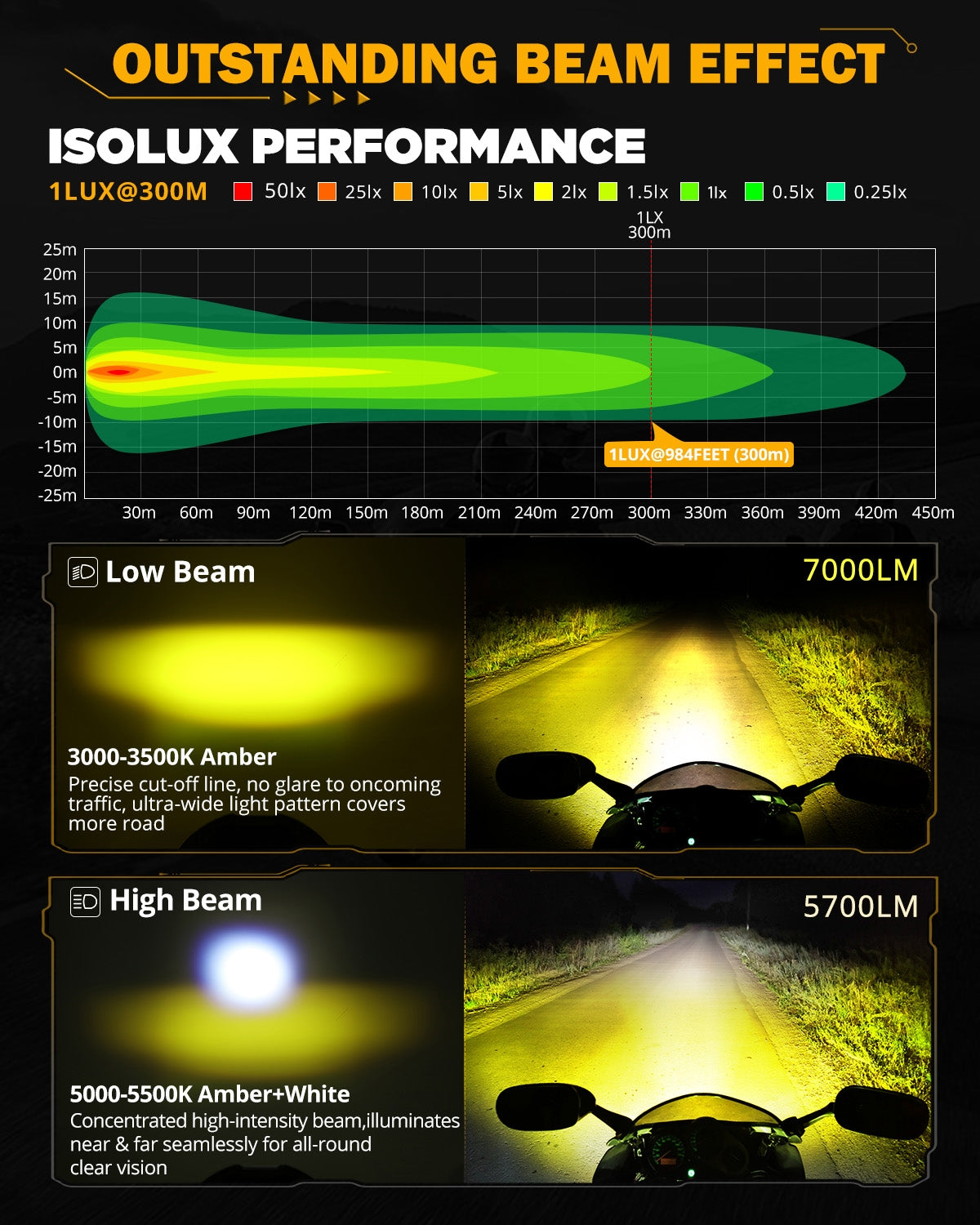

SHARP CUTOFF, WIDE VIEW
Features advanced optical technology and high-clarity PC lenses that deliver a super-focused, uniform beam with a sharp cutoff. This ensures a wide, shadow-free field of view while actively preventing glare for oncoming traffic.

Whether riding through city streets, highways, or off-road trails, it provides clearer visibility, longer projection, and greater riding confidence after dark.

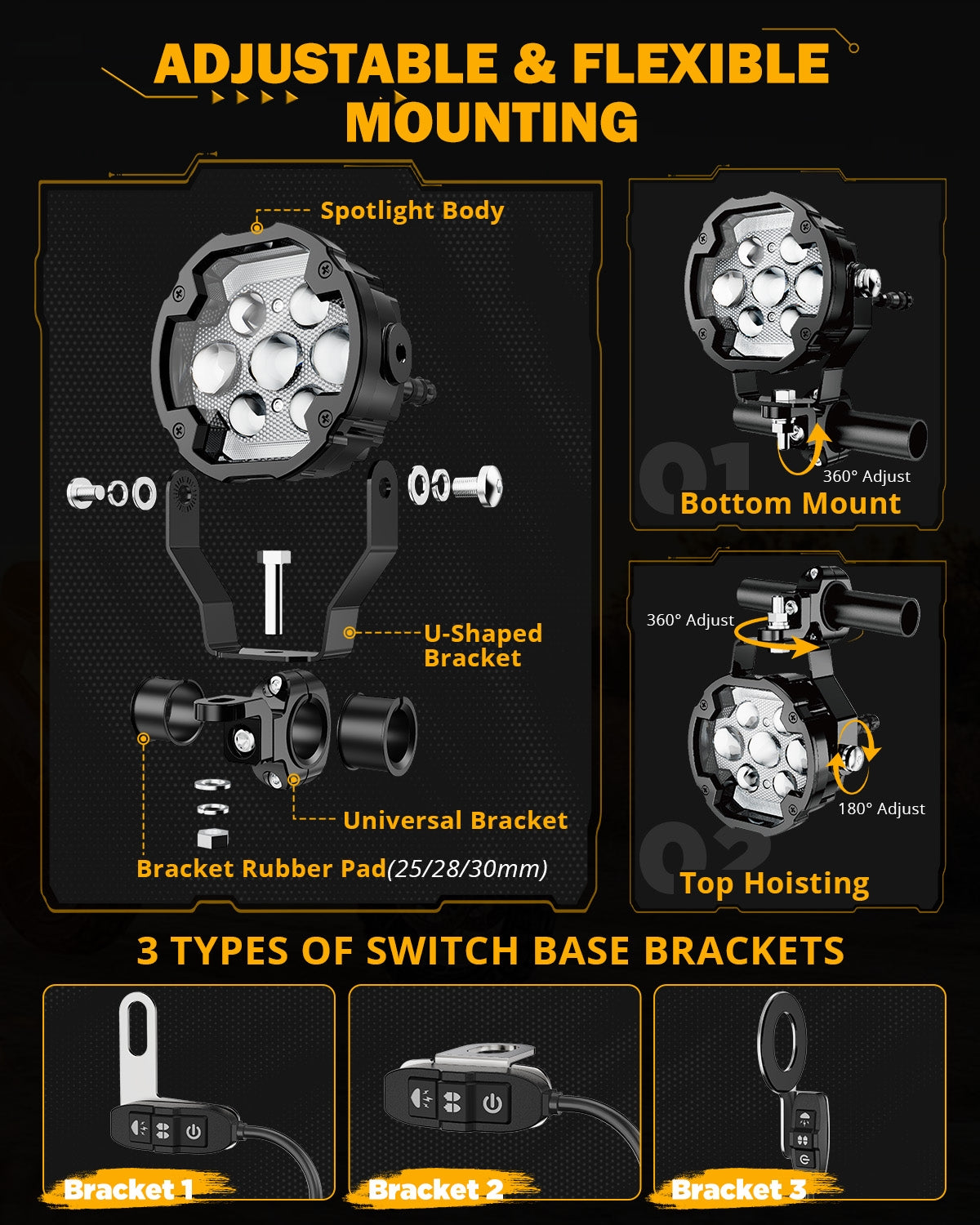

TWO BRACKET MOUNTING METHODS

U-Shaped Bracket: Heavy-duty U-shaped bracket structure for secure mounting and strong vibration resistance. Designed for fixed positions where maximum stability is critical, even on rough terrains that involve high-frequency vibrations.

Universal Bracket: Offers multi-angle flexibility with up to 360° adjustment, allowing for precise calibration of the light beam to suit various riding conditions. Perfect for custom installations or flexible mounting positions.

Non-slip Rubber Pad: Includes 3 sizes of handlebar sleeves (22mm, 25mm, 28mm) to fit most motorcycle handlebar specifications. You can choose the most suitable installation solution based on your handlebar diameter.

Flexible Remote Control Installation: Equipped with 3 types of remote control brackets, allowing you to select the most convenient location based on vehicle layout and personal preference for easy and rider-friendly operation.

Note: Due to variations in motorcycle frame designs, some models may require purchasing additional dedicated mounting brackets or modifications.

Please verify your motorcycle model before purchase, or contact our customer service with photos of your bike to confirm compatibility.

LONG LIFESPAN & EXTREME DURABILITY

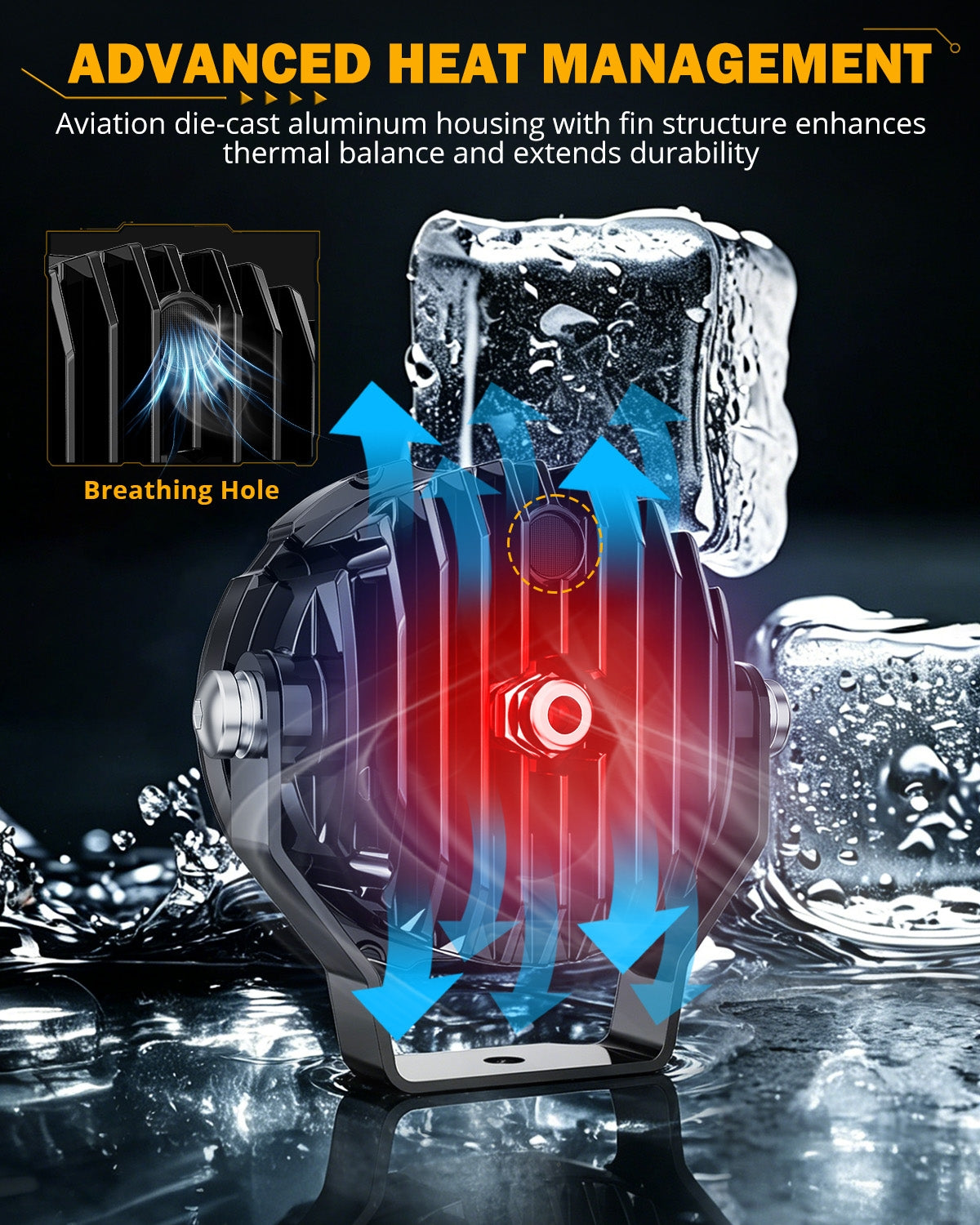

Built with high-quality LED chips and an aluminum alloy housing to efficiently manage heat, ensuring stable performance.

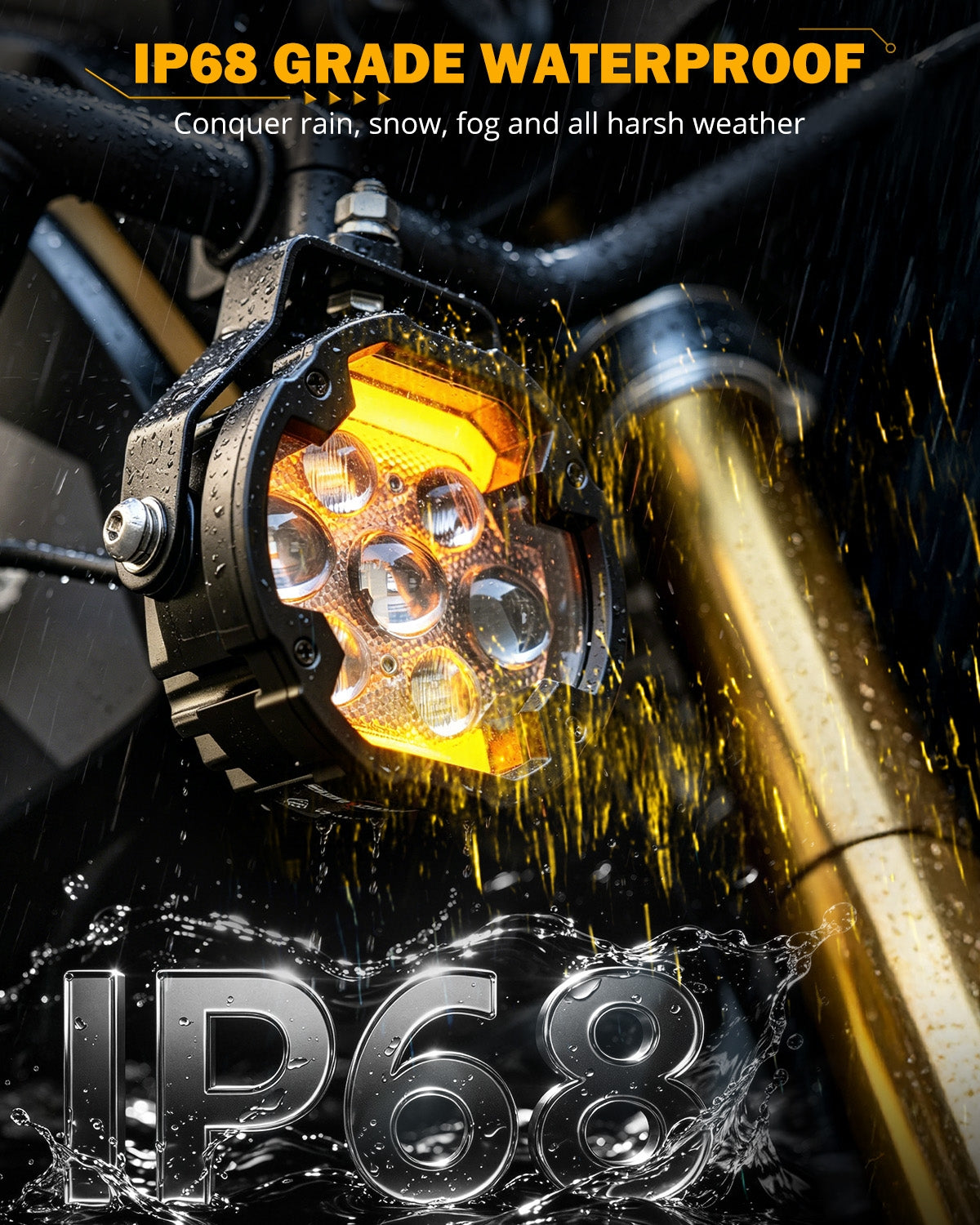

IP68 waterproof and dustproof, suitable for use in rain, fog, or extreme riding environments.
Exceptional durability with a lifespan of over 50,000 hours, ensuring long-lasting and stable lighting performance.

WIDELY APPLICATIONS
Ideal for all DC 9-30V vehicles and equipment such as motorcycle off-road, Jeep, ATVs, UTVs, pickup trucks, boats, etc.

SPECIFICATIONS
Size: 4.2inch
LED Type:
2825CPS LED Chip(DRL Amber);
3570CPS LED Chip(Low Beam);
5050CPS LED Chip(High Beam)
Light Mode: Always On and Flashing
Power(2/PCS): 2-8W DRL, 76W Low Beam, 72W High Beam
Color Temperature:
1600-1800K Amber DRL;
3000K-3500K Yellow;
5000-5500K White &Yellow Combo
Lumen Flux: 7049LM Low Beam; 5674LM High Beam
Beam Feature: Amber Daytime Running Light(Breathing Modes), 6 Lighting Modes
Operating Voltage: 9-30V
Maximum Current: 15A
Average Current: 8A
Lens Material: HD Lens
Shell Material: Die-Cast Aluminum Alloy Housing
Bracket: U-Shaped Bracket and Universal Adjustment Bracket
LED Lifespan: 50,000 Hours
Waterproof Rate: IP68
Ambient Operating Temperature: -40°C~125°C

PACKAGE INCLUDED

Motorcycle Spotligh*2
Drive Box Components*2
U-shaped Bracket*2
Universal Bracket*2
Non-slip Rubber Pad*6
Remote Control Component*1
Remote Control Bracket A*1
Remote Control Bracket B*1
Remote Control Bracket C*1
Double-sided Adhesive for Remote Control*2
Double-sided Adhesive for Remote Control Bracket*1
M6 X 12 Hexagon Socket Screw*4
M6 Spring Washer*4
M6 Anti-loosening Washer*4
M8 X 16 Button Head Socket Screw*2
M5 Spring Washer*2
M5 X 25 Socket Caps Screw*8
M8 X 25 Hexagon Socket Screw*2
M8 Anti-loosening Socket*2
M8 Spring Washer*6
Self-locking Anti-loosening Nut*2
65MM L-shaped Small Wrench*1
70MM L-shaped Small Wrench*1
Cable Tie*10
